Where did those plugs go?

Puzzling through the wiring of the swap and can’t figure out where the connections for the brake booster-related components go.

I could try wiring them manually based on the Bentley diagrams I have, but I think I’ll check first with the forums to see if anyone there has the answer.

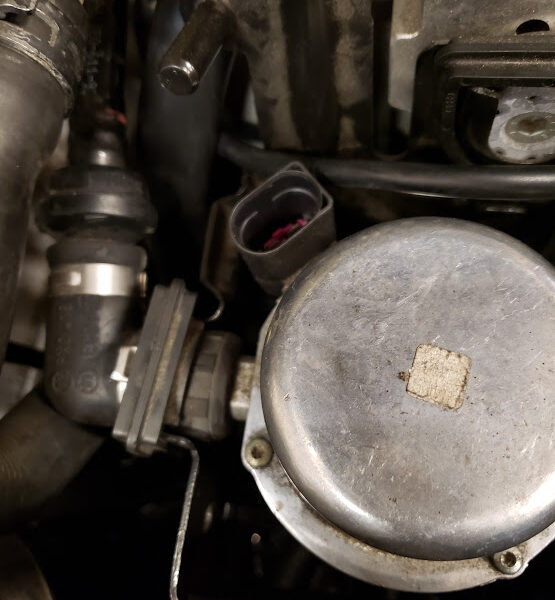

Booster pump:

Vacuum vent valve plug on side of brake master. There’s still a wire connected to the fluid level sensor… why would the wire get pulled off the brake vacuum vent?
